CMS M Series, Controlled multi-stage mini vacuum pump, max. vacuum 80%, suction flow rate 300 Nl/min, 24 V DC NC vacuum and blow-off control, one M12 4-pin connector, with exhaust collector
ref. : CMSM90X15SVOC14PG2E
characteristics
type of product (typp) Venturi
Air drawn in (aa) 300Nl/min
Maximum vacuum (mv%) 80%
Air consumed (ca) 150Nl/min
Generator Control (PG) NC/NC
Exhaust (Ech) Exhaust collector
Weight (Mas) 330g
operating pressure (op) 5.5bar
Connection (Cx) 1 x M12-4 pin
Dimensions
1 = 4 mounting holes Ø 4.5 mm
2 = vacuum switch connection G1/8"-F with plug

Note: all dimensions are in mm.
Exhaust options - Dimensions
Performance Determined by CMS M Model
Curves
Vacuum Control
Model CMSM__S: Vacuum pump with NC vacuum control and NC blow-off.
In the event of power failure, vacuum is no longer generated. In the event of compressed air failure, the vacuum is no longer maintained.
. NC blow-off and vacuum control: solenoid valves.

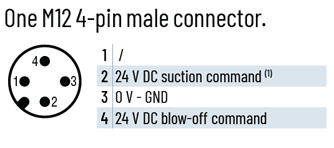

Electrical Connections
(1) 24 V DC suction command, depending on version:
- S: 24 V DC vacuum control.
- V: 24 V DC vacuum off command.
