With the MPXE series, COVAL offers a range of controlled micro vacuum pumps designed to provide industries with an efficient solution for high-speed handling of airtight parts. These pumps are part of COVAL's lineup of intelligent vacuum pumps, offering both high performance and modularity.

The MPXE Series micro vacuum pumps transform vacuum handling across various industries, such as robotics, plastics, pharmaceuticals, and more.

• Suction Power
Thanks to their single-stage Venturi technology, the MPXE Series micro vacuum pumps quickly achieve a maximum vacuum of 85%, making them ideal for dynamic applications requiring rapid cycle times.

A choice in nozzle diameter determines the power of the MPXE micro pumps. A nozzle diameter of Ø 0.7 mm achieves 15 Nl/min, while a diameter of Ø 1.0 mm delivers 26 Nl/min.

• Integrated Functions

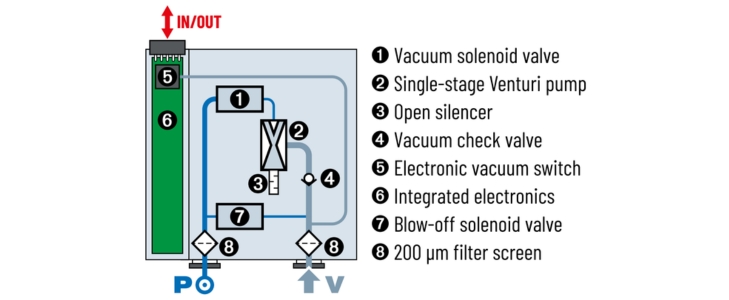

The MPXE Series micro vacuum pumps integrate all the necessary functions into a compact footprint for a simple, efficient solution adapted to each application:

• Modularity

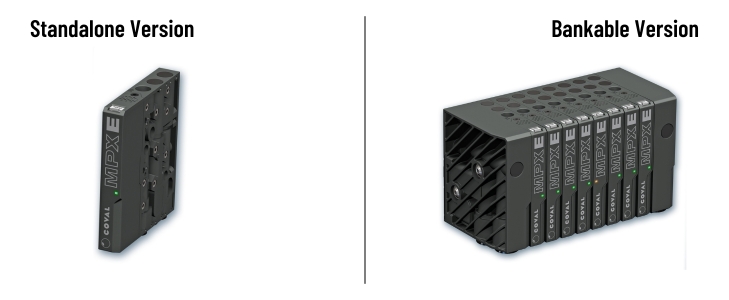

The modularity of the MPXE series offers a wide range of configurations, providing great flexibility in installation and use to adapt to the varied needs of industrial applications. The MPXE series is available as standalone modules or banks of up to 8 modules.

- Blow-off Control:
The MPXE series micro-pumps offer a choice of two blow-off solutions: standard, allowing for a slight counter blow-off, or powerful blow-off adjustable by screw.

With the MPXE series, you have a high-performance micro vacuum pump equipped with an electronic vacuum switch with a 5V DC analog output, providing a 'vacuum level' signal.
